FF-S-200B
1/4 H
FULL CARBON
ZONE
PARTIAL
DECARBURIZED ZONE
Thds per inch
1/4 H
.002
80
.002
72
.003
64
.003
56
.003
48
.004
44
.004
40
.005
36
.005
32
.006
28
.007
24
.008
20
.009
18
.010
16
.012
14
.012
13
.014
12
.015
11
.016
10
.018
9
.020
8
.023
7
.027
6
1/4 H - l/4 BASIC THREAD DEPTH

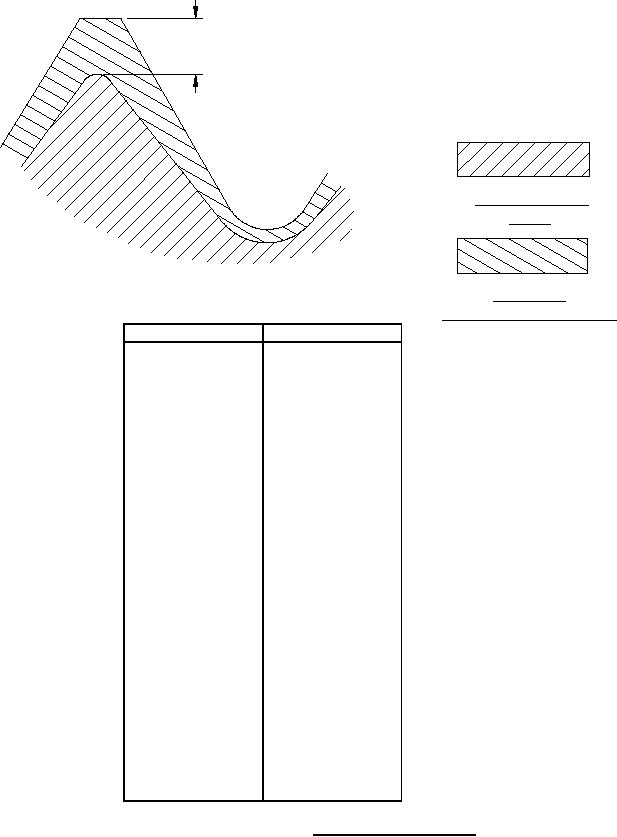

Figure 1. -- Decarburization limits.
