INCH-POUND
MS90402A
20 April 2011
SUPERSEDING MS90402
6 JUNE 1967
DETAIL SPECIFICATION SHEET SCREW, CAPTIVE
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet.

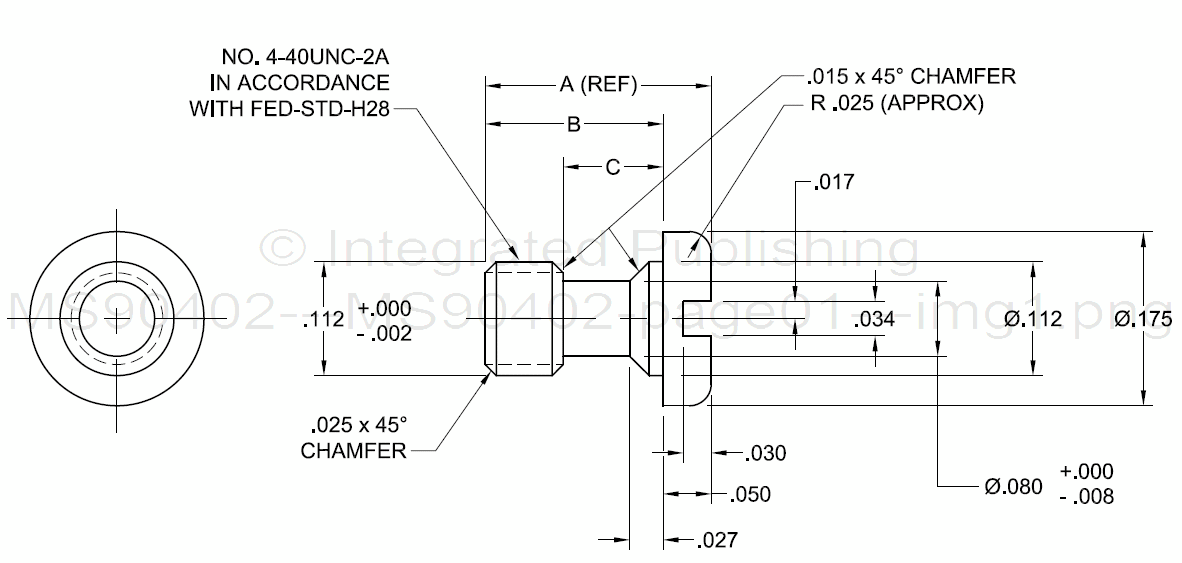

FIGURE 1. Screw, Captive.
TABLE I. Part Numbers and Dimensions.
PART NO. |
A (REF) |
B +.005 - .000 |
C |
MS90402-1 |
.222 |
.172 |
.093 |
MS90402-2 |
.200 |
.150 |
.071 |
